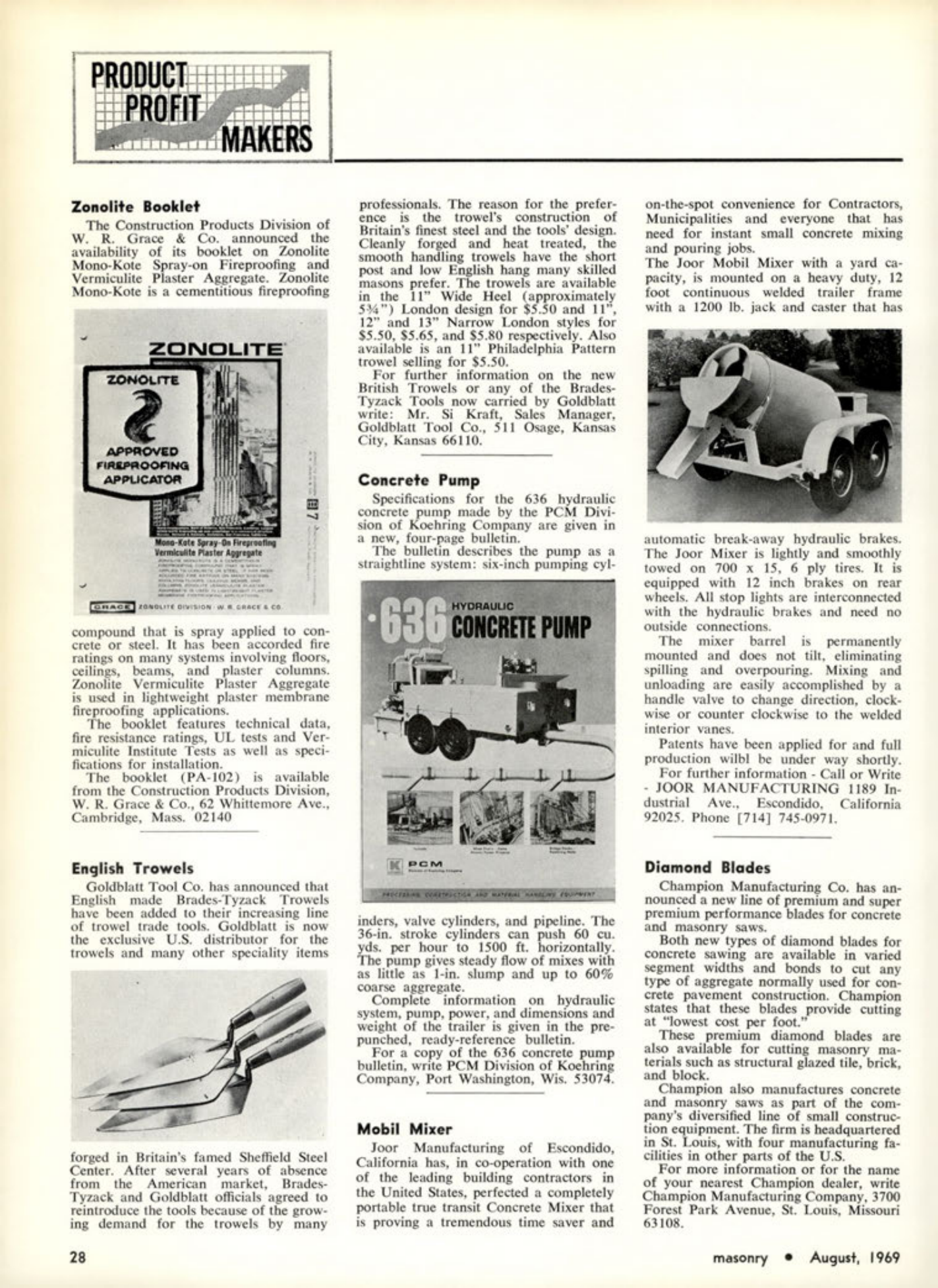

Masonry Magazine August 1969 Page. 28
PRODUCT
# PROFIT MAKERS
Zonolite Booklet
The Construction Products Division of W. R. Grace & Co. announced the availability of its booklet on Zonolite Mono-Kote Spray-on Fireproofing and Vermiculite Plaster Aggregate. Zonolite Mono-Kote is a cementitious fireproofing compound that is spray applied to concrete or steel. It has been accorded fire ratings on many systems involving floors, ceilings, beams, and plaster columns. Zonolite Vermiculite Plaster Aggregate is used in lightweight plaster membrane fireproofing applications.
The booklet features technical data, fire resistance ratings, UL tests and Vermiculite Institute Tests as well as specifications for installation.
The booklet (PA-102) is available from the Construction Products Division, W. R. Grace & Co., 62 Whittemore Ave., Cambridge, Mass. 02140
English Trowels
Goldblatt Tool Co. has announced that English made Brades-Tyzack Trowels have been added to their increasing line of trowel trade tools. Goldblatt is now the exclusive U.S. distributor for the trowels and many other speciality items forged in Britain's famed Sheffield Steel Center. After several years of absence from the American market, Brades-Tyzack and Goldblatt officials agreed to reintroduce the tools because of the growing demand for the trowels by many professionals. The reason for the preference is the trowel's construction of Britain's finest steel and the tools' design. Cleanly forged and heat treated, the smooth handling trowels have the short post and low English hang many skilled masons prefer. The trowels are available in the 11" Wide Heel (approximately 5%") London design for $5.50 and 11", 12 and 13" Narrow London styles for $5.50, $5.65, and $5.80 respectively. Also available is an 11" Philadelphia Pattern trowel selling for $5.50.
For further information on the new British Trowels or any of the Brades-Tyzack Tools now carried by Goldblatt write: Mr. Si Kraft, Sales Manager, Goldblatt Tool Co., 511 Osage, Kansas City, Kansas 66110.
Concrete Pump
Specifications for the 636 hydraulic concrete pump made by the PCM Division of Koehring Company are given in a new, four-page bulletin.
The bulletin describes the pump as a straightline system: six-inch pumping cylinders, valve cylinders, and pipeline. The 36-in. stroke cylinders can push 60 cu. yds. per hour to 1500 ft. horizontally. The pump gives steady flow of mixes with as little as 1-in. slump and up to 60% coarse aggregate.
Complete information on hydraulic system, pump, power, and dimensions and weight of the trailer is given in the pre-punched, ready-reference bulletin.
For a copy of the 636 concrete pump bulletin, write PCM Division of Koehring Company, Port Washington, Wis. 53074.
Mobil Mixer
Joor Manufacturing of Escondido, California has, in co-operation with one of the leading building contractors in the United States, perfected a completely portable true transit Concrete Mixer that is proving a tremendous time saver and on-the-spot convenience for Contractors, Municipalities and everyone that has need for instant small concrete mixing and pouring jobs.
The Joor Mobil Mixer with a yard capacity, is mounted on a heavy duty, 12 foot continuous welded trailer frame with a 1200 lb. jack and caster that has automatic break-away hydraulic brakes. The Joor Mixer is lightly and smoothly towed on 700 x 15, 6 ply tires. It is equipped with 12 inch brakes on rear wheels. All stop lights are interconnected with the hydraulic brakes and need no outside connections.
The mixer barrel is permanently mounted and does not tilt, eliminating spilling and overpouring. Mixing and unloading are easily accomplished by a handle valve to change direction, clockwise or counter clockwise to the welded interior vanes.
Patents have been applied for and full production wilbl be under way shortly.
For further information Call or Write JOOR MANUFACTURING 1189 Industrial Ave., Escondido, California 92025. Phone [714] 745-0971.
Diamond Blades
Champion Manufacturing Co. has announced a new line of premium and super premium performance blades for concrete and masonry saws.
Both new types of diamond blades for concrete sawing are available in varied segment widths and bonds to cut any type of aggregate normally used for concrete pavement construction. Champion states that these blades provide cutting at "lowest cost per foot."
These premium diamond blades are also available for cutting masonry materials such as structural glazed tile, brick, and block.
Champion also manufactures concrete and masonry saws as part of the company's diversified line of small construction equipment. The firm is headquartered in St. Louis, with four manufacturing facilities in other parts of the U.S.
For more information or for the name of your nearest Champion dealer, write Champion Manufacturing Company, 3700 Forest Park Avenue, St. Louis, Missouri 63108.
masonry August, 1969
