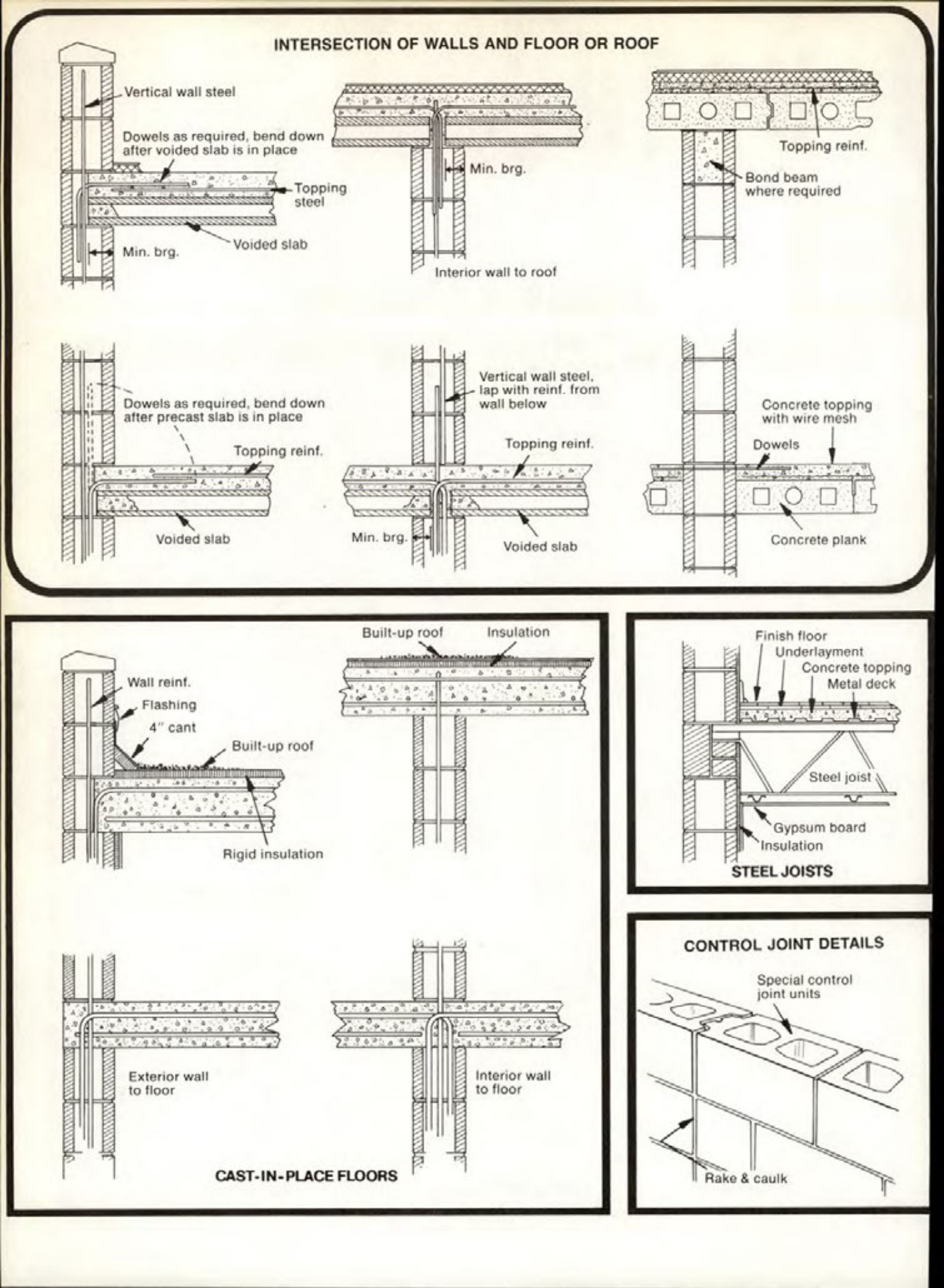

INTERSECTION OF WALLS AND FLOOR OR ROOF
Vertical wall steel. Dowels as required, bend down after voided slab is in place. Min. brg. Topping steel.
Voided slab. Min. brg. Interior wall to roof. Π 1005. Topping reinf.
Bond beam where required. Dowels as required, bend down after precast slab is in place.
Voided slab. Topping reinf. Vertical wall steel. lap with reinf. from wall below. Topping reinf.
Min. brg. Voided slab. Concrete topping with wire mesh. Dowels. ㅁㅇ. Concrete plank.
Wall reinf. Flashing. 4" cant. Exterior wall to floor. Built-up roof. Rigid insulation. Built-up roof Insulation.
Interior wall to floor. Finish floor. Underlayment. Concrete topping. Metal deck.
Steel joist. Gypsum board. Insulation.
STEEL JOISTS
CONTROL JOINT DETAILS
Special control joint units.
Rake & caulk
CAST-IN-PLACE FLOORS
