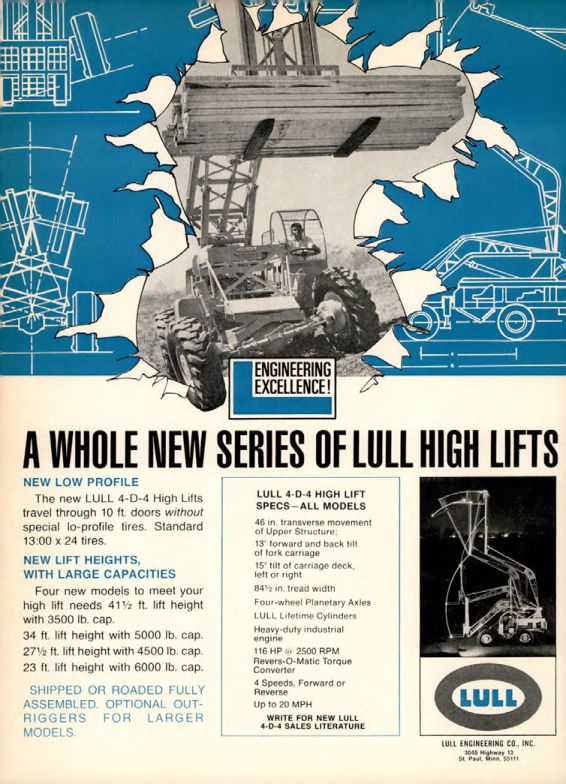

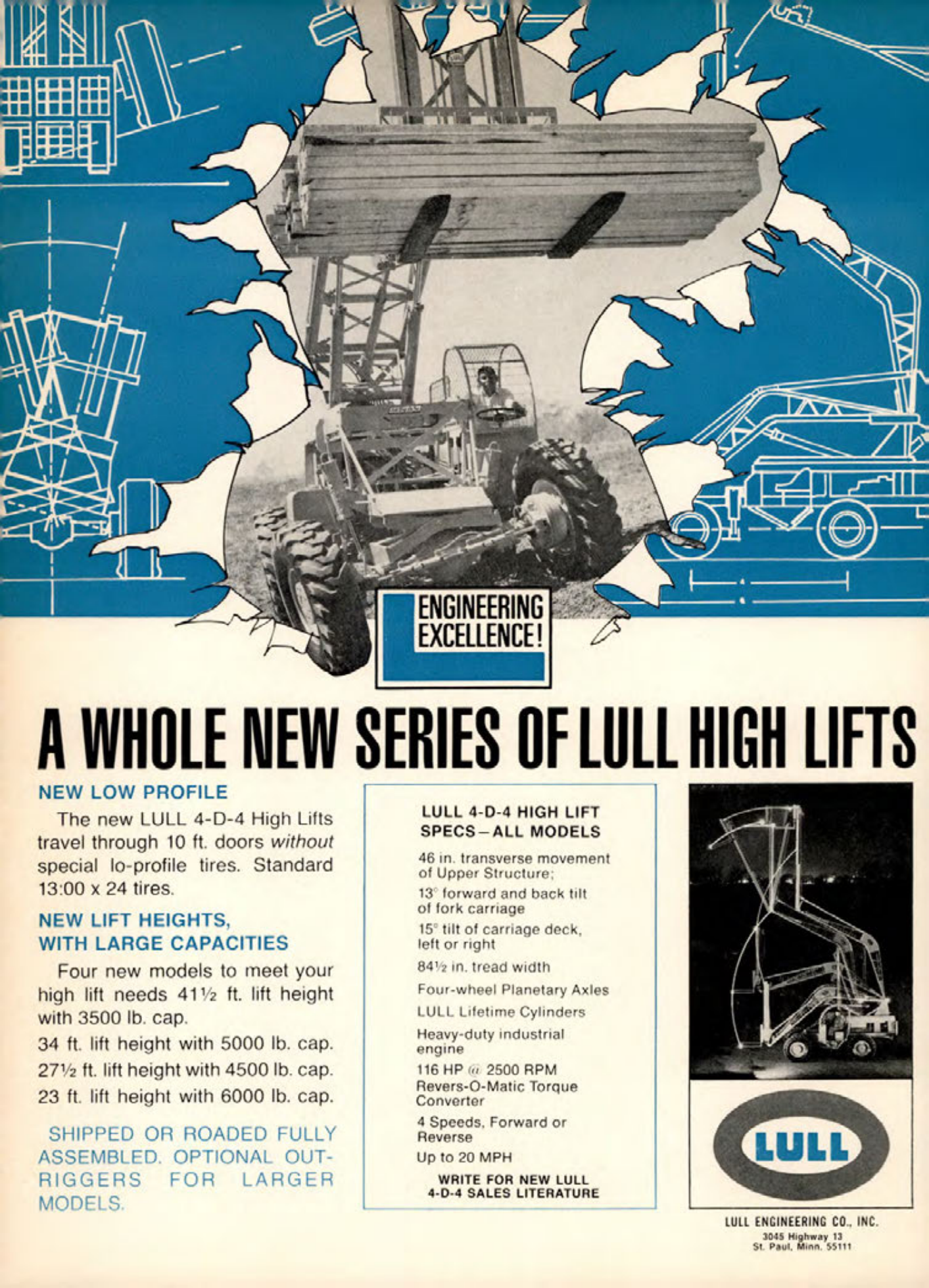

Masonry Magazine January 1972 Page. 4
ENGINEERING EXCELLENCE!
A WHOLE NEW SERIES OF LULL HIGH LIFTS
NEW LOW PROFILE
The new LULL 4-D-4 High Lifts travel through 10 ft. doors without special lo-profile tires. Standard 13:00 x 24 tires.
NEW LIFT HEIGHTS, WITH LARGE CAPACITIES
Four new models to meet your high lift needs: 41½ ft. lift height with 3500 lb. cap., 34 ft. lift height with 5000 lb. cap., 271½ ft. lift height with 4500 lb. cap., and 23 ft. lift height with 6000 lb. cap.
SHIPPED OR ROADED FULLY ASSEMBLED. OPTIONAL OUT-RIGGERS FOR LARGER MODELS.
LULL 4-D-4 HIGH LIFT SPECS-ALL MODELS
46 in. transverse movement of Upper Structure; 13° forward and back tilt of fork carriage; 15° tilt of carriage deck, left or right; 841½ in. tread width; Four-wheel Planetary Axles; LULL Lifetime Cylinders; Heavy-duty industrial engine; 116 HP @ 2500 RPM; Revers-O-Matic Torque Converter; 4 Speeds, Forward or Reverse; Up to 20 MPH.
WRITE FOR NEW LULL 4-D-4 SALES LITERATURE
LULL ENGINEERING CO., INC.
3045 Highway 13
St. Paul, Minn. 55111
