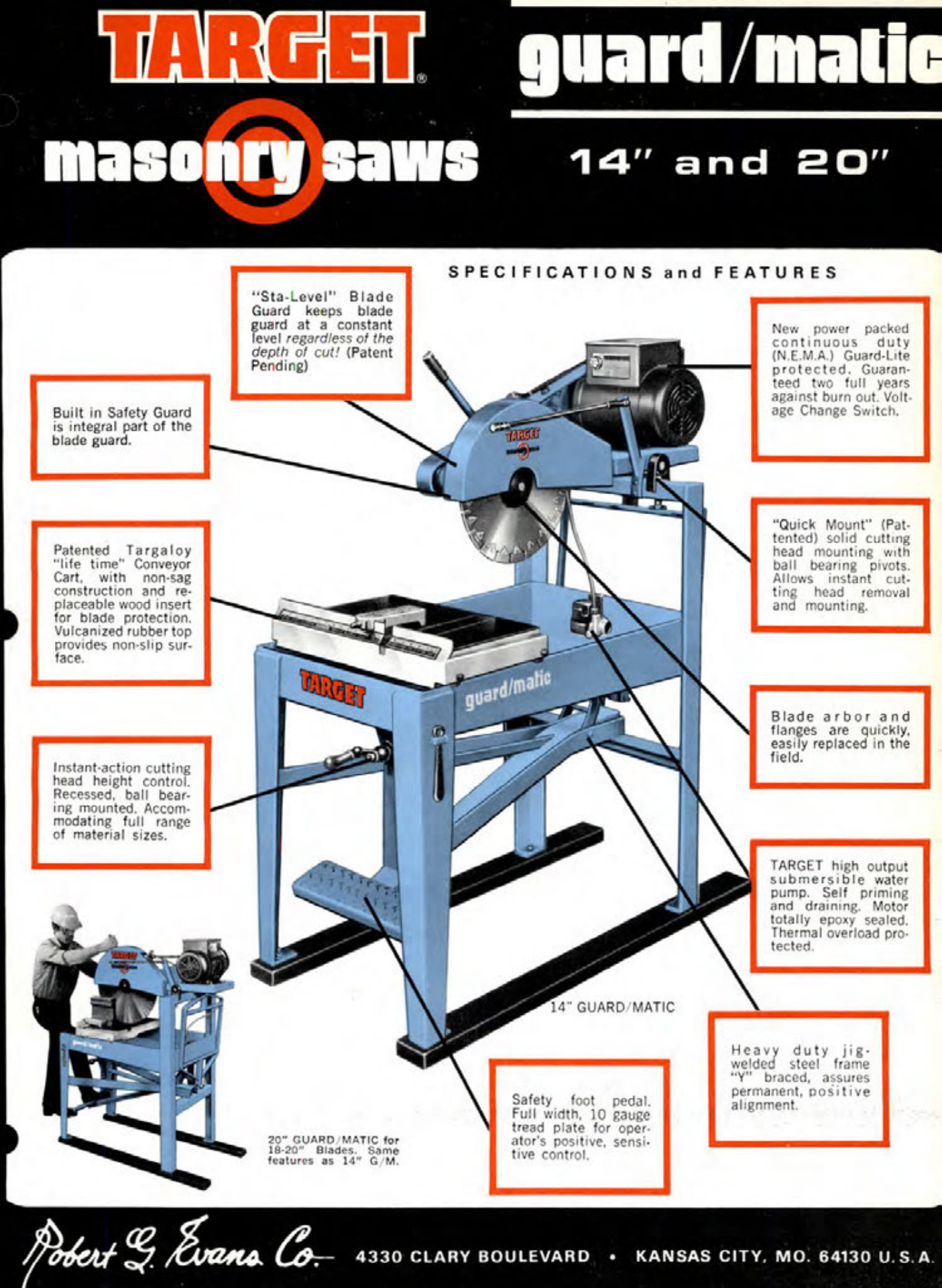

Masonry Magazine May 1973 Page. 9
TARGET guard/matic
masonry saws
14" and 20"
Built in Safety Guard is integral part of the blade guard.
"Sta-Level" Blade Guard keeps blade guard at a constant level regardless of the depth of cut! (Patent Pending)
SPECIFICATIONS and FEATURES
New power packed continuous duty (N.E.M.A.) Guard-Lite protected. Guaranteed two full years against burn out. Voltage Change Switch.
Patented Targaloy "life time" Conveyor Cart, with non-sag construction and replaceable wood insert for blade protection. Vulcanized rubber top provides non-slip surface.
"Quick Mount" (Patented) solid cutting head mounting with ball bearing pivots. Allows instant cutting head removal and mounting.
Instant-action cutting head height control. Recessed, ball bearing mounted. Accommodating full range of material sizes.
Blade arbor and flanges are quickly, easily replaced in the field.
TARGET high output submersible water pump. Self priming and draining. Motor totally epoxy sealed. Thermal overload protected.
20" GUARD/MATIC for 18-20" Blades. Same features as 14" G/M.
14" GUARD/MATIC
Safety foot pedal. Full width, 10 gauge tread plate for operator's positive, sensitive control.
Heavy duty jig-welded steel frame "Y" braced, assures permanent, positive alignment.
Robert G. Evans Co. 4330 CLARY BOULEVARD KANSAS CITY, MO. 64130 U.S. A.
