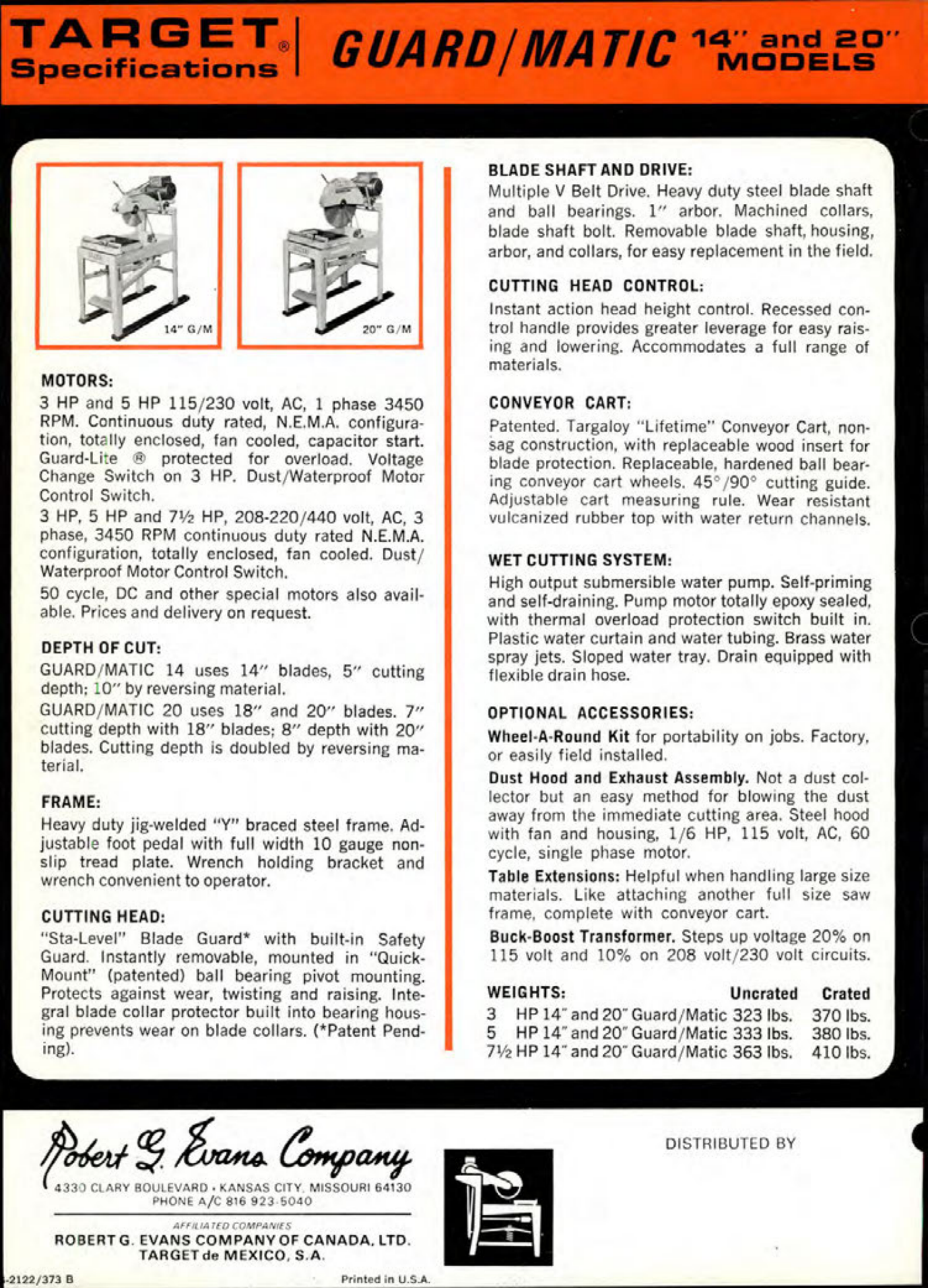

TARGET GUARD/MATIC
14" and 20" MODELS
14" G/M
20" G/M
MOTORS:
3 HP and 5 HP 115/230 volt, AC, 1 phase 3450 RPM. Continuous duty rated, N.E.M.A. configuration, totally enclosed, fan cooled, capacitor start. Guard-Lite protected for overload. Voltage Change Switch on 3 HP. Dust/Waterproof Motor Control Switch.
3 HP, 5 HP and 712 HP, 208-220/440 volt, AC, 3 phase, 3450 RPM continuous duty rated N.Ε.Μ.Α. configuration, totally enclosed, fan cooled. Dust/Waterproof Motor Control Switch.
50 cycle, DC and other special motors also available. Prices and delivery on request.
DEPTH OF CUT:
GUARD/MATIC 14 uses 14" blades, 5" cutting depth; 10" by reversing material.
GUARD/MATIC 20 uses 18" and 20" blades. 7" cutting depth with 18" blades; 8" depth with 20" blades. Cutting depth is doubled by reversing material.
FRAME:
Heavy duty jig-welded "Y" braced steel frame. Adjustable foot pedal with full width 10 gauge non-slip tread plate. Wrench holding bracket and wrench convenient to operator.
CUTTING HEAD:
"Sta-Level" Blade Guard with built-in Safety Guard. Instantly removable, mounted in "Quick-Mount" (patented) ball bearing pivot mounting. Protects against wear, twisting and raising. Integral blade collar protector built into bearing housing prevents wear on blade collars. (*Patent Pending).
BLADE SHAFT AND DRIVE:
Multiple V Belt Drive. Heavy duty steel blade shaft and ball bearings. 1" arbor. Machined collars, blade shaft bolt. Removable blade shaft, housing, arbor, and collars, for easy replacement in the field.
CUTTING HEAD CONTROL:
Instant action head height control. Recessed control handle provides greater leverage for easy raising and lowering. Accommodates a full range of materials.
CONVEYOR CART:
Patented. Targaloy "Lifetime" Conveyor Cart, non-sag construction, with replaceable wood insert for blade protection. Replaceable, hardened ball bearing conveyor cart wheels. 45°/90° cutting guide. Adjustable cart measuring rule. Wear resistant vulcanized rubber top with water return channels.
WET CUTTING SYSTEM:
High output submersible water pump. Self-priming and self-draining. Pump motor totally epoxy sealed, with thermal overload protection switch built in. Plastic water curtain and water tubing. Brass water spray jets. Sloped water tray. Drain equipped with flexible drain hose.
OPTIONAL ACCESSORIES:
Wheel-A-Round Kit for portability on jobs. Factory, or easily field installed.
Dust Hood and Exhaust Assembly. Not a dust collector but an easy method for blowing the dust away from the immediate cutting area. Steel hood with fan and housing, 1/6 HP, 115 volt, AC, 60 cycle, single phase motor.
Table Extensions: Helpful when handling large size materials. Like attaching another full size saw frame, complete with conveyor cart.
Buck-Boost Transformer. Steps up voltage 20% on 115 volt and 10% on 208 volt/230 volt circuits.
WEIGHTS:
Uncrated Crated
3 HP 14" and 20" Guard/Matic 323 lbs. 370 lbs.
5 HP 14" and 20" Guard/Matic 333 lbs. 380 lbs.
712 HP 14" and 20" Guard/Matic 363 lbs. 410 lbs.
Robert G. Evans Company
4330 CLARY BOULEVARD KANSAS CITY, MISSOURI 64130
PHONE A/C 816 923-5040
AFFILIATED COMPANIES
ROBERT G. EVANS COMPANY OF CANADA, LTD.
TARGET de MEXICO, S.A.
-2122/373 B
Printed in U.SA.
