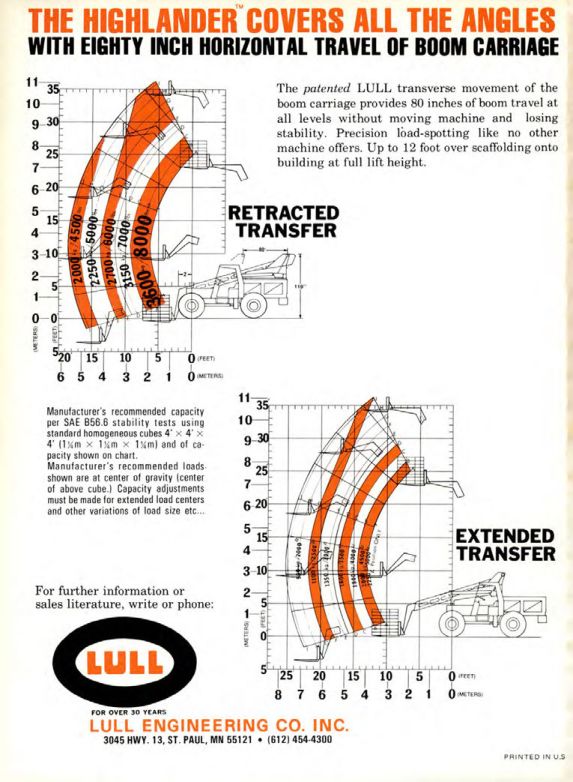

Masonry Magazine January 1977 Page. 16
THE HIGHLANDER COVERS ALL THE ANGLES
WITH EIGHTY INCH HORIZONTAL TRAVEL OF BOOM CARRIAGE
11
10
35
9-30
8
25
7
6-20
5
15
4
3-10
2
5
0-0
00090027
2000/4500-
2250 5000
3150 7000円
3600-8000
-2-
The patented LULL transverse movement of the boom carriage provides 80 inches of boom travel at all levels without moving machine and losing stability. Precision load-spotting like no other machine offers. Up to 12 foot over scaffolding onto building at full lift height.
RETRACTED
TRANSFER
119
(METERS) C
(FEET)
520 20 15 10 5
0 (FEET)
6 5 4 3 2 1 0 METERS)
Manufacturer's recommended capacity per SAE B56.6 stability tests using standard homogeneous cubes 4 x 4 x 4' (1m x 1m×1m) and of capacity shown on chart. Manufacturer's recommended loads shown are at center of gravity (center of above cube.) Capacity adjustments must be made for extended load centers and other variations of load size etc....
11
10
35
9-30
8
25
7
6-20
5
For further information or sales literature, write or phone:
LULL
15
4
3-10
(METERS
2
5
OFERTS
2000
AINO
5
25 20 15 10 5
FOR OVER 30 YEARS
8 7 6 5 4 3 2 1 0 (METERS)
LULL ENGINEERING CO. INC.
3045 HWY. 13, ST. PAUL, MN 55121 (612) 454-4300
EXTENDED
TRANSFER
PRINTED IN U.S
