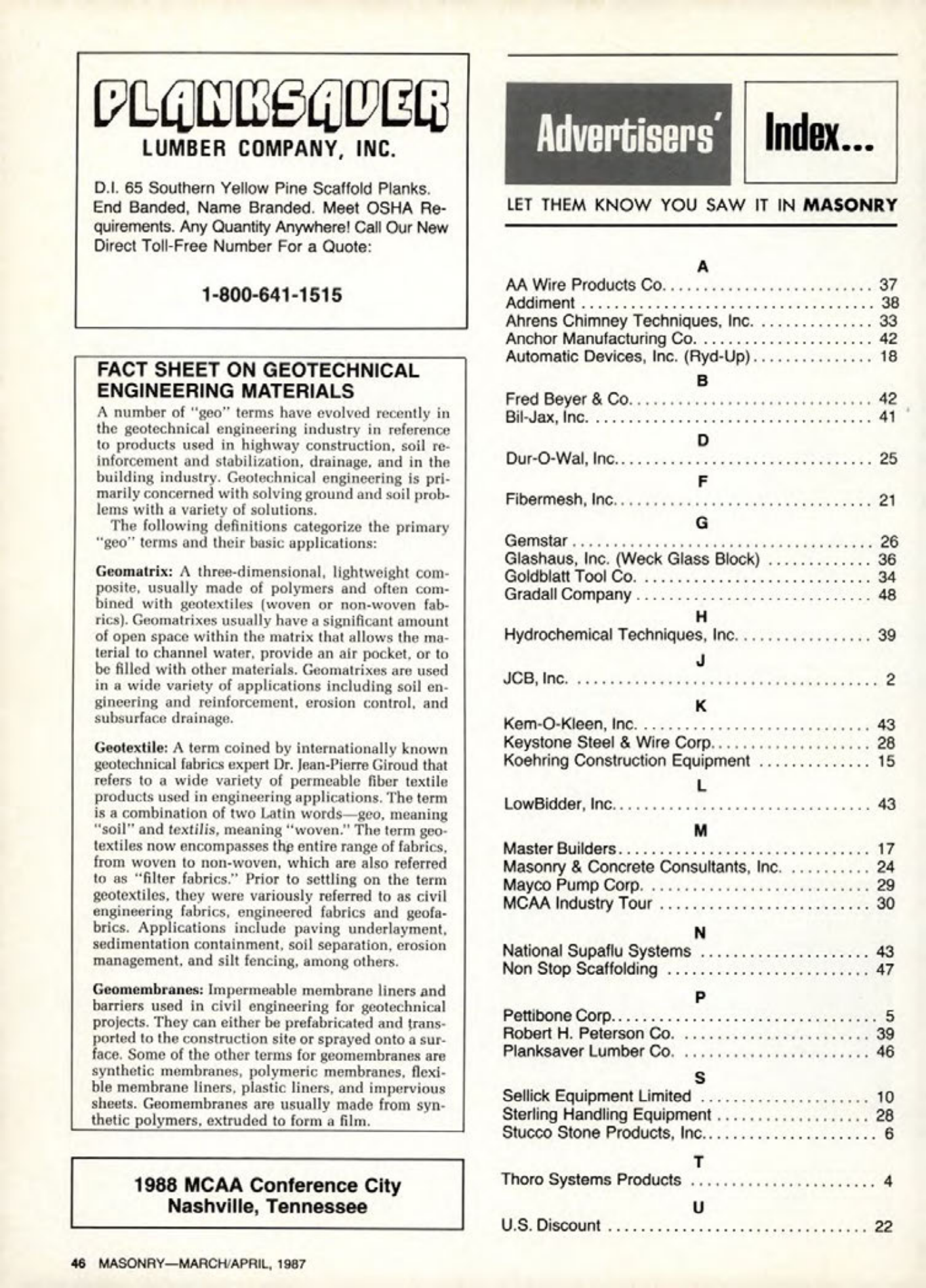

Masonry Magazine April 1987 Page. 46
PLANKSAVER
LUMBER COMPANY, INC.
D.I. 65 Southern Yellow Pine Scaffold Planks.
End Banded, Name Branded. Meet OSHA Re-
quirements. Any Quantity Anywhere! Call Our New
Direct Toll-Free Number For a Quote:
1-800-641-1515
Advertisers' Index...
LET THEM KNOW YOU SAW IT IN MASONRY
FACT SHEET ON GEOTECHNICAL
ENGINEERING MATERIALS
A number of "geo" terms have evolved recently in
the geotechnical engineering industry in reference
to products used in highway construction, soil re-
inforcement and stabilization, drainage, and in the
building industry. Geotechnical engineering is pri-
marily concerned with solving ground and soil prob-
lems with a variety of solutions.
The following definitions categorize the primary
"geo" terms and their basic applications:
Geomatrix: A three-dimensional, lightweight com-
posite, usually made of polymers and often com-
bined with geotextiles (woven or non-woven fab-
rics). Geomatrixes usually have a significant amount
of open space within the matrix that allows the ma-
terial to channel water, provide an air pocket, or to
be filled with other materials. Geomatrixes are used
in a wide variety of applications including soil en-
gineering and reinforcement, erosion control, and
subsurface drainage.
Geotextile: A term coined by internationally known
geotechnical fabrics expert Dr. Jean-Pierre Giroud that
refers to a wide variety of permeable fiber textile
products used in engineering applications. The term
is a combination of two Latin words-geo, meaning
"soil" and textilis, meaning "woven." The term geo-
textiles now encompasses the entire range of fabrics,
from woven to non-woven, which are also referred
to as "filter fabrics." Prior to settling on the term
geotextiles, they were variously referred to as civil
engineering fabrics, engineered fabrics and geofa-
brics. Applications include paving underlayment,
sedimentation containment, soil separation, erosion
management, and silt fencing, among others.
Geomembranes: Impermeable membrane liners and
barriers used in civil engineering for geotechnical
projects. They can either be prefabricated and trans-
ported to the construction site or sprayed onto a sur-
face. Some of the other terms for geomembranes are
synthetic membranes, polymeric membranes, flexi-
ble membrane liners, plastic liners, and impervious
sheets. Geomembranes are usually made from syn-
thetic polymers, extruded to form a film.
