SUMMARY
Section properties of brick masonry materials and assemblages are required whenever a rational design of brick masonry structural elements is developed following the criteria of the MSJC Code and Specifications. This Technical Notes provides a summary of section properties of brick masonry. Section properties of clay and shale masonry units, steel reinforcement and typical brick masonry assemblages are given.
The information and suggestions contained in this Technical Notes are based on the available data and the experience of the engineering staff of the Brick Institute of America. The information contained herein must be used in conjunction with good technical judgment and a basic understanding of the properties of brick masonry. Final decisions on the use of the information contained in this Technical Notes are not within the purview of the Brick Institute of America and must rest with the project architect, engineer and owner.
REFERENCES
1. Building Code Requirements for Masonry Structures and Commentary (ACI 530/ASCE 5/TMS 402-92) and Specifications for Masonry Structures and Commentary (ACI 530.1/ASCE 6/TMS 602-92), American Concrete Institute, Detroit, MI, 1992.

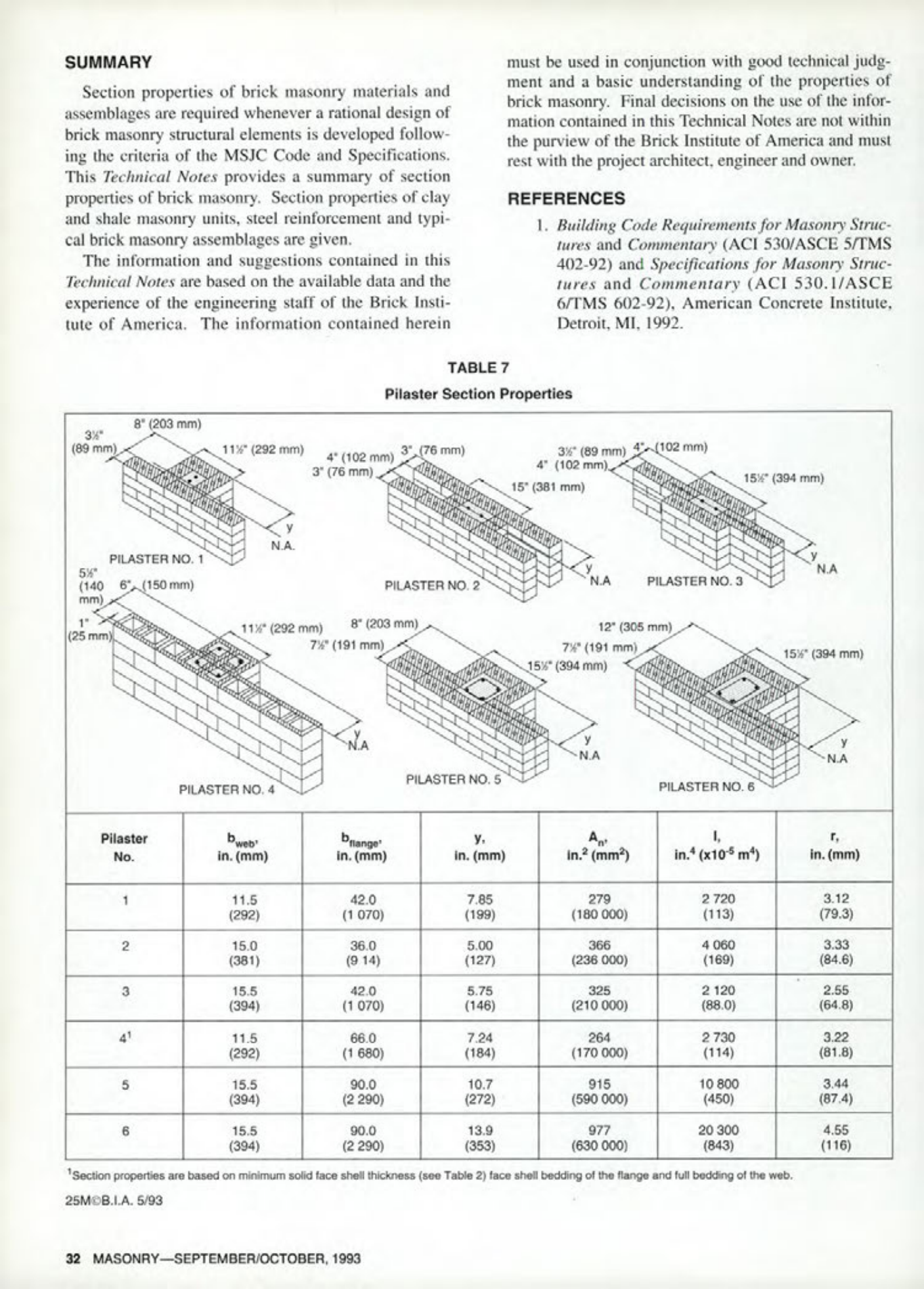

TABLE 7
Pilaster Section Properties
`
8° (203 mm)
3
(89 mm)
11% (292 mm)
4* (102 mm)
3" (76 mm).
3" (76 mm)
3% (89 mm) 4 (102 mm)
4" (102 mm)
15" (381 mm)
15" (394 mm)
PILASTER NO. 1
5%
(140 6 (150 mm)
mm)
1"
(25 mm)
Ν.Α.
11% (292 mm)
PILASTER NO. 4
NA
PILASTER NO.2
NA
PILASTER NO. 3
8° (203 mm)
7% (191 mm)
12" (305 mm)
7% (191 mm)
15% (394 mm)
y
N.A
PILASTER NO. 5
PILASTER NO. 6
15% (394 mm)
Y
N.A
Pilaster No. | bweb in. (mm) | briange in. (mm) | У. in. (mm) | A in.² (mm²) | I, in. (x105 m²) | r. in. (mm)
---|---|---|---|---|---|---
1 | 11.5 (292) | 42.0 (1070) | 7.85 (199) | 279 (180 000) | 2 720 (113) | 3.12 (79.3)
2 | 15.0 (381) | 36.0 (914) | 5.00 (127) | 366 (236 000) | 4060 (169) | 3.33 (84.6)
3 | 15.5 (394) | 42.0 (1070) | 5.75 (146) | 325 (210 000) | 2 120 (88.0) | 2.55 (64.8)
4 | 11.5 (292) | 66.0 (1680) | 7.24 (184) | 264 (170 000) | 2730 (114) | 3.22 (81.8)
5 | 15.5 (394) | 90.0 (2290) | 10.7 (272) | 915 (590 000) | 10 800 (450) | 3.44 (87.4)
6 | 15.5 (394) | 90.0 (2290) | 13.9 (353) | 977 (630 000) | 20 300 (843) | 4.55 (116)
Section properties are based on minimum solid face shell thickness (see Table 2) face shell bedding of the flange and full bedding of the web.
