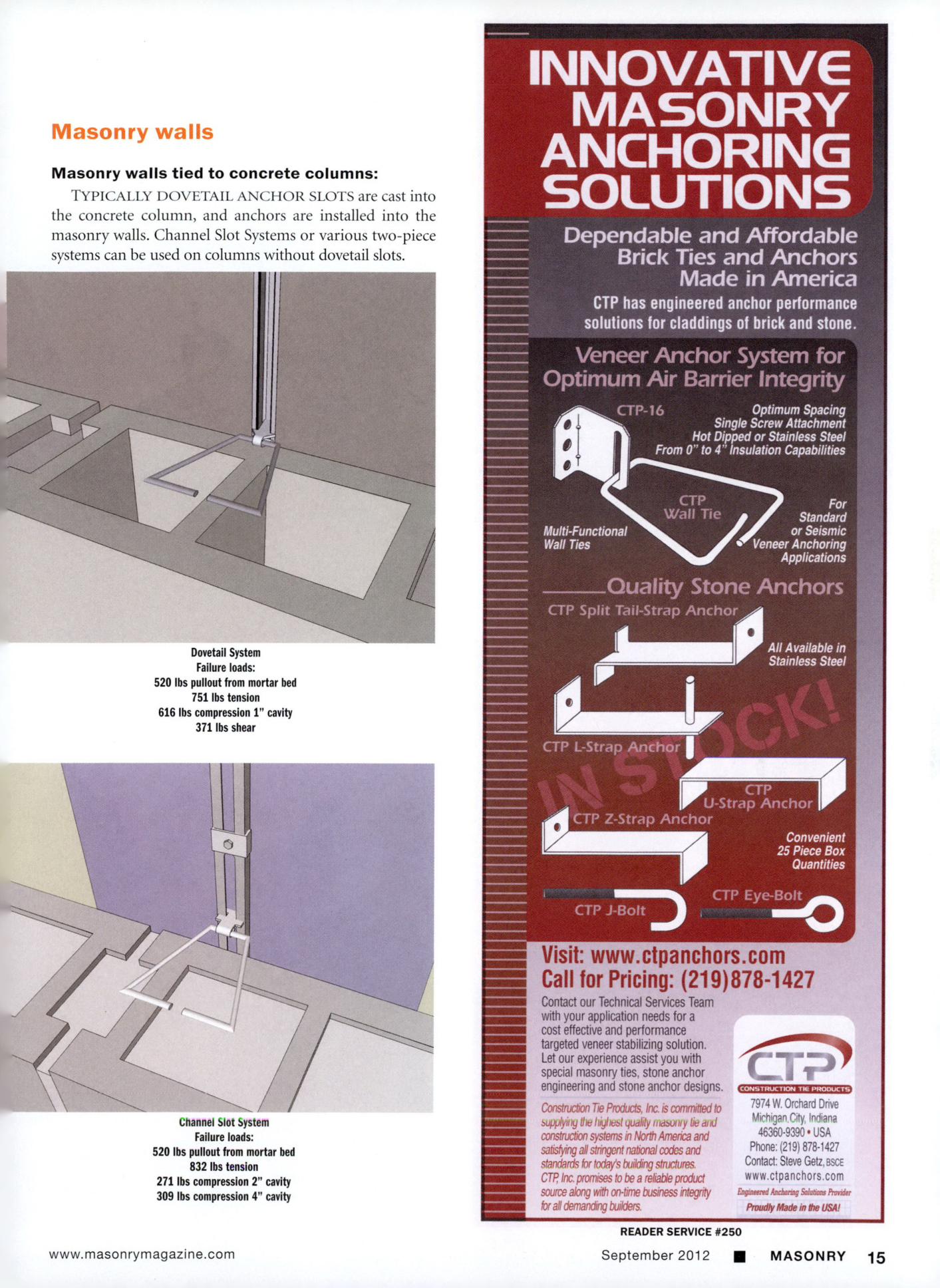

Masonry walls
Masonry walls tied to concrete columns: Typically dovetail anchor slots are cast into the concrete column, and anchors are installed into the masonry walls. Channel Slot Systems or various two-piece systems can be used on columns without dovetail slots.
Dovetaill System
Failure loads:
520 lbs pullout from mortar bed
751 lbs tension
616 lbs compression 1" cavity
371 lbs shear
Channel Siet System
Failure loads:
520 lbs pullout from mortar bed
832 lbs tension
271 lbs compression 2" cavity
309 lbs compression 4" cavity
