Rethinking Shelf Angle Design for High-Performance Masonry Walls

Words: Erica Oliveraz
Photos: Hohmann & Barnard

If you've been around masonry construction long enough, you know the shelf angle is one of those details that’s easy to take for granted. It’s been used the same way for decades, set it at the slab edge, support the veneer, move on. But as building requirements have changed, especially around energy performance, that “standard” detail has started to show its age.

Today, we’re being asked to build tighter, more efficient walls. Continuous insulation, better air barriers, and improved moisture control are all of it is pushing the envelope forward. And right in the middle of that wall assembly is the shelf angle. If we don’t address it properly, it can undo a lot of the good work happening everywhere else.

That’s where offset shelf angle systems come into play.

What’s the Issue with Traditional Shelf Angles?
The problem isn’t structural; traditional shelf angles do their job just fine, supporting masonry. The issue is how they interact with the rest of the wall.

When you bolt a continuous steel angle directly to the slab edge, you’re creating a direct path for thermal transfer through the wall. Steel conducts heat extremely well, so every floor line becomes a thermal bridge. Multiply that across an entire building, and it adds up fast.

Research has shown that this condition can knock down the effective R-value of a wall by 40% to 60%. That’s a reduction, especially when you’ve got designers working hard to meet the energy code.

On top of that, traditional shelf angles interrupt your insulation and air barrier. That means more complicated flashing details, more coordination between trades, and more chances for something to go wrong in the field.

What Does “Offset” Really Mean?
An offset shelf angle system is straightforward in concept. Instead of being placed onto the slab edge, the support angle is held off the slab edge using brackets or vertical supports.

That separation creates space for insulation to stay continuous, and space for the air barrier to run uninterrupted behind the steel.

Rather than one continuous piece of steel conducting heat across the building, you now have a series of spaced connection points. From a thermal standpoint, that’s a significant improvement.

How These Systems Are Put Together
Most offset systems follow the same basic idea, even if the details vary from project to project.

You’ve got:

A connection back to the structure (anchors, inserts, rods, etc.)
A support element, typically a bracket or fin, that carries the load outward
And the horizontal angle that supports the masonry

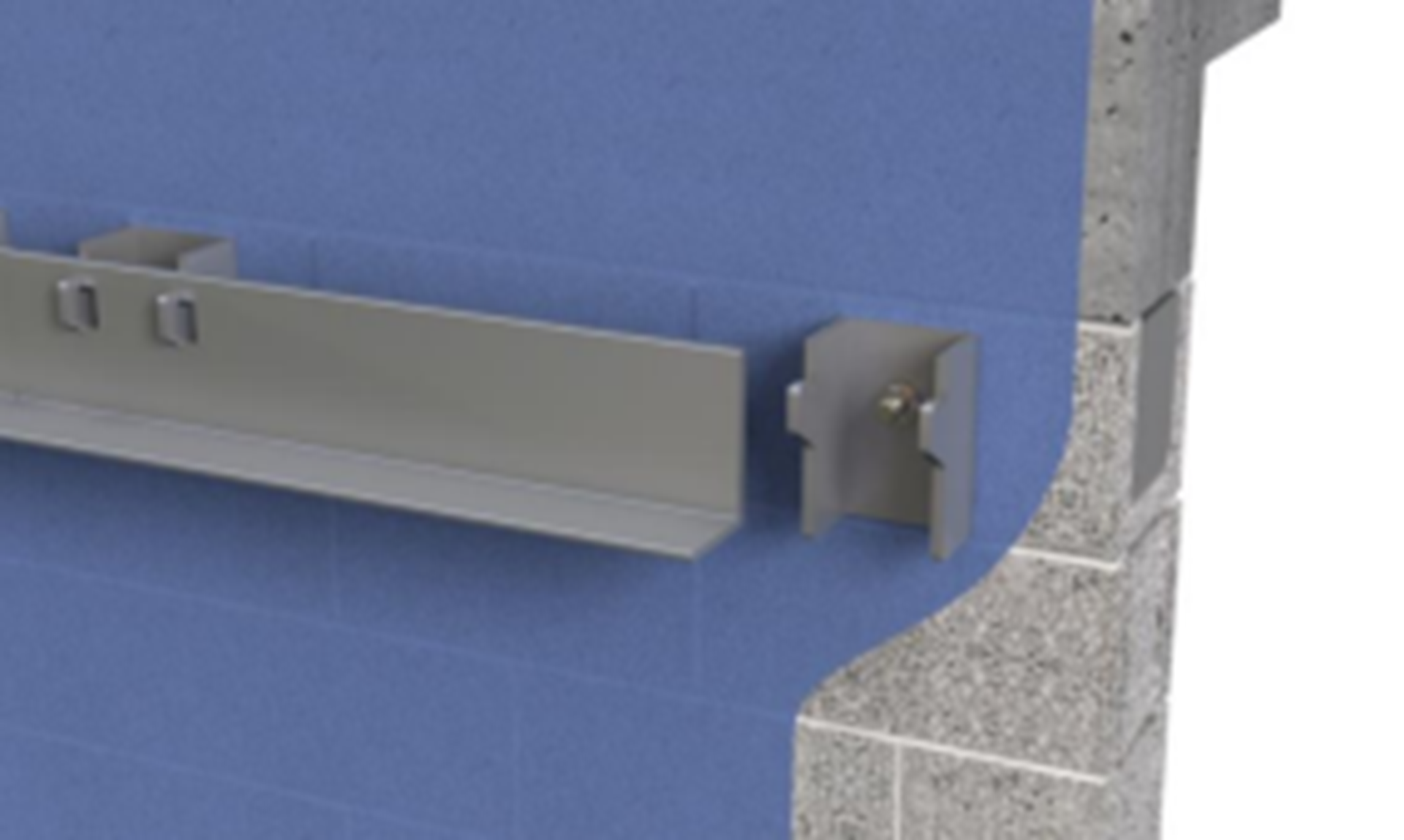

With bracket-style systems, those supports are installed first, spaced based on engineering requirements. The angle is then set onto the brackets, often with some adjustability built in, which masons always appreciate.

Depending on the job, you might see:

Standard brackets where everything lines up close to the slab edge
Longer brackets when you need to drop down to hit a window head or joint

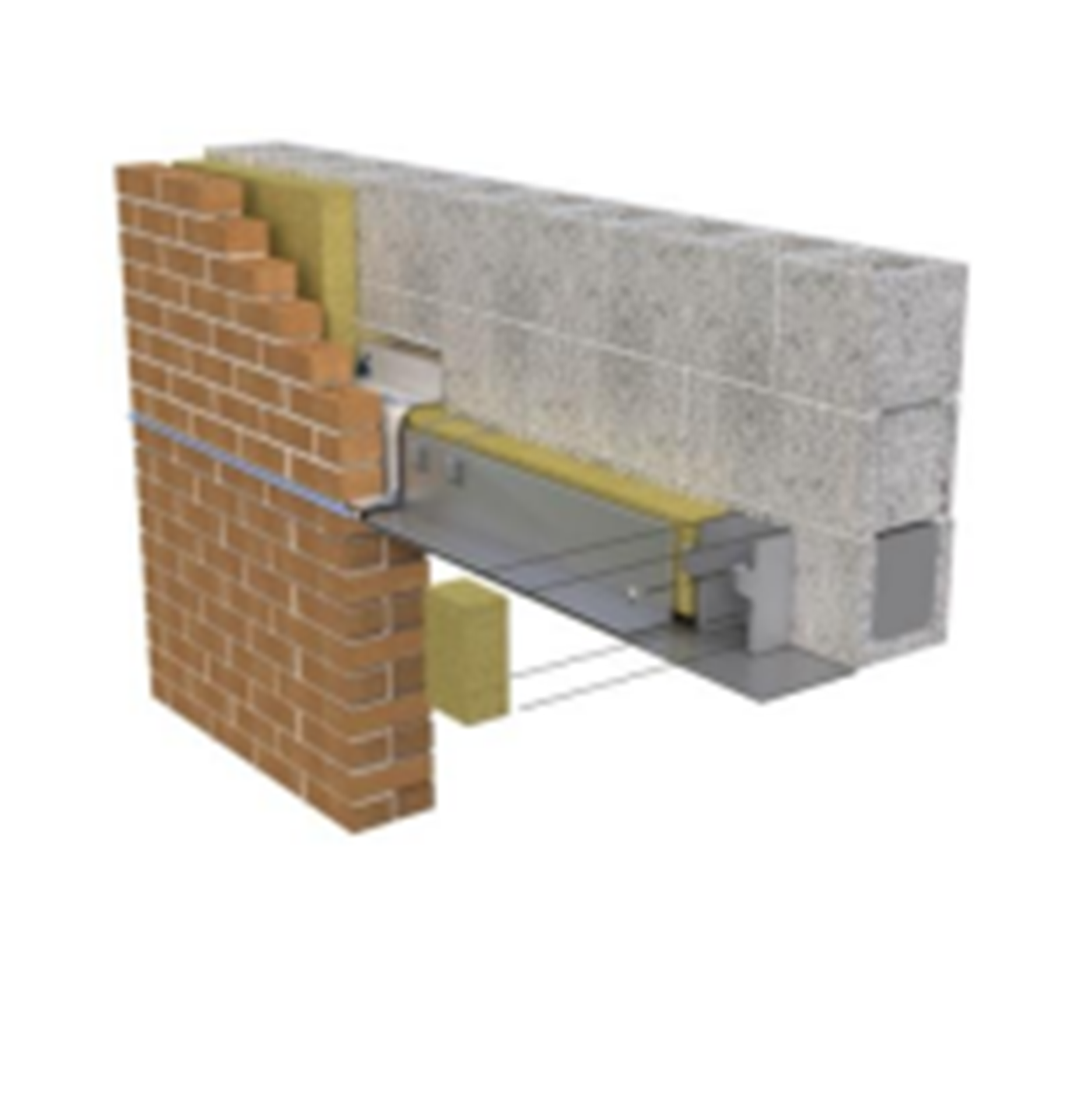

Recessed setups, when the cavity is tight or flashing, need to be coordinated

Keeping the Insulation Continuous
This is where offset systems earn their keep. By moving the steel out into the cavity, you can run your insulation uninterrupted from floor line to floor line. That’s a big deal when you’re trying to meet today’s energy codes.

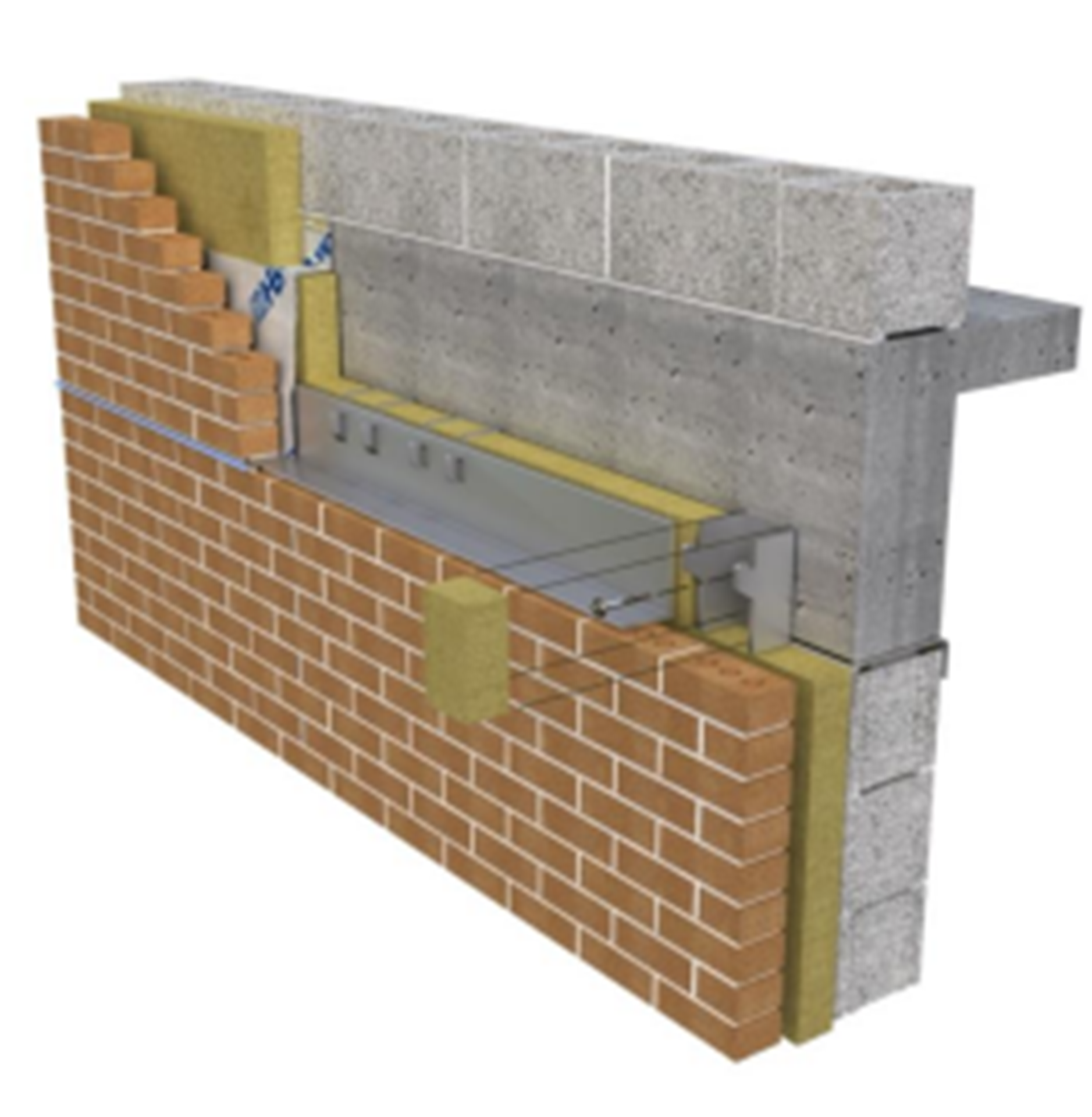

In the field, it’s not just about the big picture; it’s about the small details too. Around the brackets, you’ll often see insulation infill used to close gaps and maintain continuity. In more advanced systems, you’ll often see pre-formed insulation pieces or mineral wool plugs used to close gaps and make sure there aren’t weak spots in the system.

You may also see thermal shims or isolators at connection points to help reduce heat transfer even further.

Put all that together, and you can retain a large portion of the wall’s intended R-value, often 80% or better depending on the setup.

What About Water?
Anyone who’s dealt with masonry knows water management is just as important as structure.

Traditional shelf angles tend to interrupt the drainage plane. Water hits the angle, and now you’re relying heavily on flashing and weeps to get it back out. It works, but it requires careful installation to perform as intended.

With offset systems, the angle is moved out into the cavity, and the drainage path stays more open. Water can move down the face of the insulation and exit the wall more naturally.

It also allows your air and vapor barrier to stay more continuous at the structure, which is where you want your primary defense to be.

The result is a system that’s a little more forgiving and a little less dependent on perfect execution at every step.

Installation: Who’s in Control?
This is one of the more practical advantages that doesn’t always get talked about enough.

Traditional shelf angles are usually installed early, often by ironworkers, before the rest of the wall system is in place. That can create alignment issues later when the masons come in.

Offset systems are often installed closer to when the veneer goes up, and typically by the same crew responsible for the masonry. That gives them more control over layout, alignment, and adjustments.

It also helps with coordination. Air barriers and insulation can go in first, the way they’re supposed to, and then the support system is added without cutting everything up.

Working with Today’s Codes
Energy codes like ASHRAE 90.1 are pushing for continuous insulation, and they’re clear about minimizing thermal bridging.

Traditional shelf angles don’t fit well with that requirement. There’s always going to be a break in the insulation where the angle sits.

Offset systems are designed specifically to deal with that. By matching the depth of the insulation and keeping the support angle out in the cavity, they allow for true continuity at one of the most critical points in the wall.

For designers aiming to meet performance targets and contractors focused on executing the plans, that difference matters.

Final Thoughts
Shelf angles aren’t going away. Masonry still needs support, and that’s not going to change. But how we support it is evolving.

Offset shelf angle systems are a good example of the industry adapting to new demands. They solve a real problem, thermal bridging, without creating new ones. And they do it in a way that works in the field, not just on paper.

For masons, contractors, and designers alike, it’s a detail worth paying attention to. In today’s buildings, it’s often the small details that make the biggest difference.
