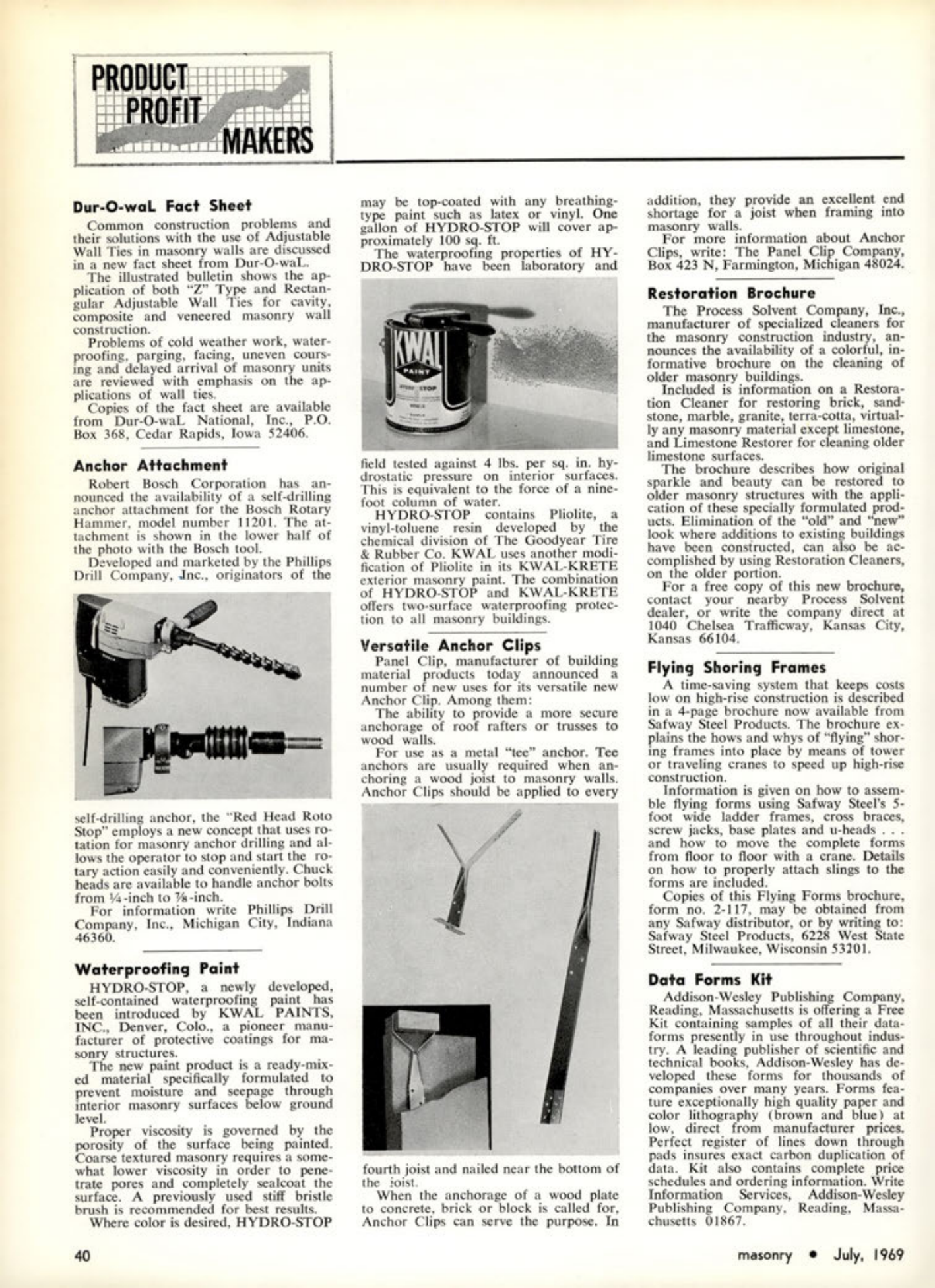

Masonry Magazine July 1969 Page. 40
PRODUCT
PROFIT
MAKERS
Dur-O-wal Fact Sheet
Common construction problems and their solutions with the use of Adjustable Wall Ties in masonry walls are discussed in a new fact sheet from Dur-O-waL. The illustrated bulletin shows the application of both "Z" Type and Rectangular Adjustable Wall Ties for cavity, composite and veneered masonry wall construction. Problems of cold weather work, waterproofing, parging, facing, uneven coursing and delayed arrival of masonry units are reviewed with emphasis on the applications of wall ties. Copies of the fact sheet are available from Dur-O-wal. National, Inc., P.O. Box 368, Cedar Rapids, Iowa 52406.
Anchor Attachment
Robert Bosch Corporation has announced the availability of a self-drilling anchor attachment for the Bosch Rotary Hammer, model number 11201. The attachment is shown in the lower half of the photo with the Bosch tool. Developed and marketed by the Phillips Drill Company, Inc., originators of the self-drilling anchor, the "Red Head Roto Stop" employs a new concept that uses rotation for masonry anchor drilling and allows the operator to stop and start the rotary action easily and conveniently. Chuck heads are available to handle anchor bolts from 14-inch to 6-inch. For information write Phillips Drill Company, Inc., Michigan City, Indiana 46360.
Waterproofing Paint
HYDRO-STOP, a newly developed, self-contained waterproofing paint has been introduced by KWAL PAINTS, INC., Denver, Colo., a pioneer manufacturer of protective coatings for masonry structures. The new paint product is a ready-mixed material specifically formulated to prevent moisture and seepage through interior masonry surfaces below ground level. Proper viscosity is governed by the porosity of the surface being painted. Coarse textured masonry requires a somewhat lower viscosity in order to penetrate pores and completely sealcoat the surface. A previously used stiff bristle brush is recommended for best results. Where color is desired, HYDRO-STOP may be top-coated with any breathing-type paint such as latex or vinyl. One gallon of HYDRO-STOP will cover approximately 100 sq. ft. The waterproofing properties of HYDRO-STOP have been laboratory and field tested against 4 lbs. per sq. in. hydrostatic pressure on interior surfaces. This is equivalent to the force of a nine-foot column of water. HYDRO-STOP contains Pliolite, a vinyl-toluene resin developed by the chemical division of The Goodyear Tire & Rubber Co. KWAL uses another modification of Pliolite in its KWAL-KRETE exterior masonry paint. The combination of HYDRO-STOP and KWAL-KRETE offers two-surface waterproofing protection to all masonry buildings.
Versatile Anchor Clips
Panel Clip, manufacturer of building material products today announced a number of new uses for its versatile new Anchor Clip. Among them: The ability to provide a more secure anchorage of roof rafters or trusses to wood walls. For use as a metal "tee" anchor. Tee anchors are usually required when anchoring a wood joist to masonry walls. Anchor Clips should be applied to every fourth joist and nailed near the bottom of the joist. When the anchorage of a wood plate to concrete, brick or block is called for, Anchor Clips can serve the purpose. In addition, they provide an excellent end shortage for a joist when framing into masonry walls. For more information about Anchor Clips, write: The Panel Clip Company, Box 423 N, Farmington, Michigan 48024.
Restoration Brochure
The Process Solvent Company, Inc., manufacturer of specialized cleaners for the masonry construction industry, announces the availability of a colorful, informative brochure on the cleaning of older masonry buildings. Included is information on a Restoration Cleaner for restoring brick, sandstone, marble, granite, terra-cotta, virtually any masonry material except limestone, and Limestone Restorer for cleaning older limestone surfaces. The brochure describes how original sparkle and beauty can be restored to older masonry structures with the application of these specially formulated products. Elimination of the "old" and "new" look where additions to existing buildings have been constructed, can also be accomplished by using Restoration Cleaners, on the older portion. For a free copy of this new brochure, contact your nearby Process Solvent dealer, or write the company direct at 1040 Chelsea Trafficway, Kansas City, Kansas 66104.
Flying Shoring Frames
A time-saving system that keeps costs low on high-rise construction is described in a 4-page brochure now available from Safway Steel Products. The brochure explains the hows and whys of "flying" shoring frames into place by means of tower or traveling cranes to speed up high-rise construction. Information is given on how to assemble flying forms using Safway Steel's 5-foot wide ladder frames, cross braces, screw jacks, base plates and u-heads... and how to move the complete forms from floor to floor with a crane. Details on how to properly attach slings to the forms are included. Copies of this Flying Forms brochure, form no. 2-117, may be obtained from any Safway distributor, or by writing to: Safway Steel Products, 6228 West State Street, Milwaukee, Wisconsin 53201.
Data Forms Kit
Addison-Wesley Publishing Company, Reading, Massachusetts is offering a Free Kit containing samples of all their data-forms presently in use throughout industry. A leading publisher of scientific and technical books, Addison-Wesley has developed these forms for thousands of companies over many years. Forms feature exceptionally high quality paper and color lithography (brown and blue) at low, direct from manufacturer prices. Perfect register of lines down through pads insures exact carbon duplication of data. Kit also contains complete price schedules and ordering information. Write Information Services, Addison-Wesley Publishing Company, Reading, Massachusetts 01867.
