Lasers in Construction

Words: Jeffrey Beck

Lasers have become indispensable tools in the construction industry, significantly improving accuracy, efficiency, and ease of operation. Two main types of lasers commonly used are personal lasers (including dot, line, cross line, and 3x360 lasers) and rotary lasers. This article delves into the applications, advantages, and disadvantages of these lasers, with a focus on personal and rotary lasers.

Types of Personal Lasers
Personal lasers, particularly cross line and 3x360 lasers, are ideal for a variety of interior and exterior applications. These lasers project precise horizontal and vertical lines, facilitating a range of tasks:

* Drywall Construction: For layout work, positioning partition walls, and suspending ceilings.

* Electrical Installation: For quickly and easily aligning sockets, switches, and cable trays horizontally and vertically.

* Tiling: For marking out tile layouts and aligning and laying tiles.

* Plumbing Work: For the precise transfer of marking points, aligning pipe hangers, and positioning and installing pipes and heating pipes.

* Carpentry and Joining: For transferring drill holes precisely, aligning countertops quickly, and installing furniture and cabinets accurately.

Types of Rotary Lasers

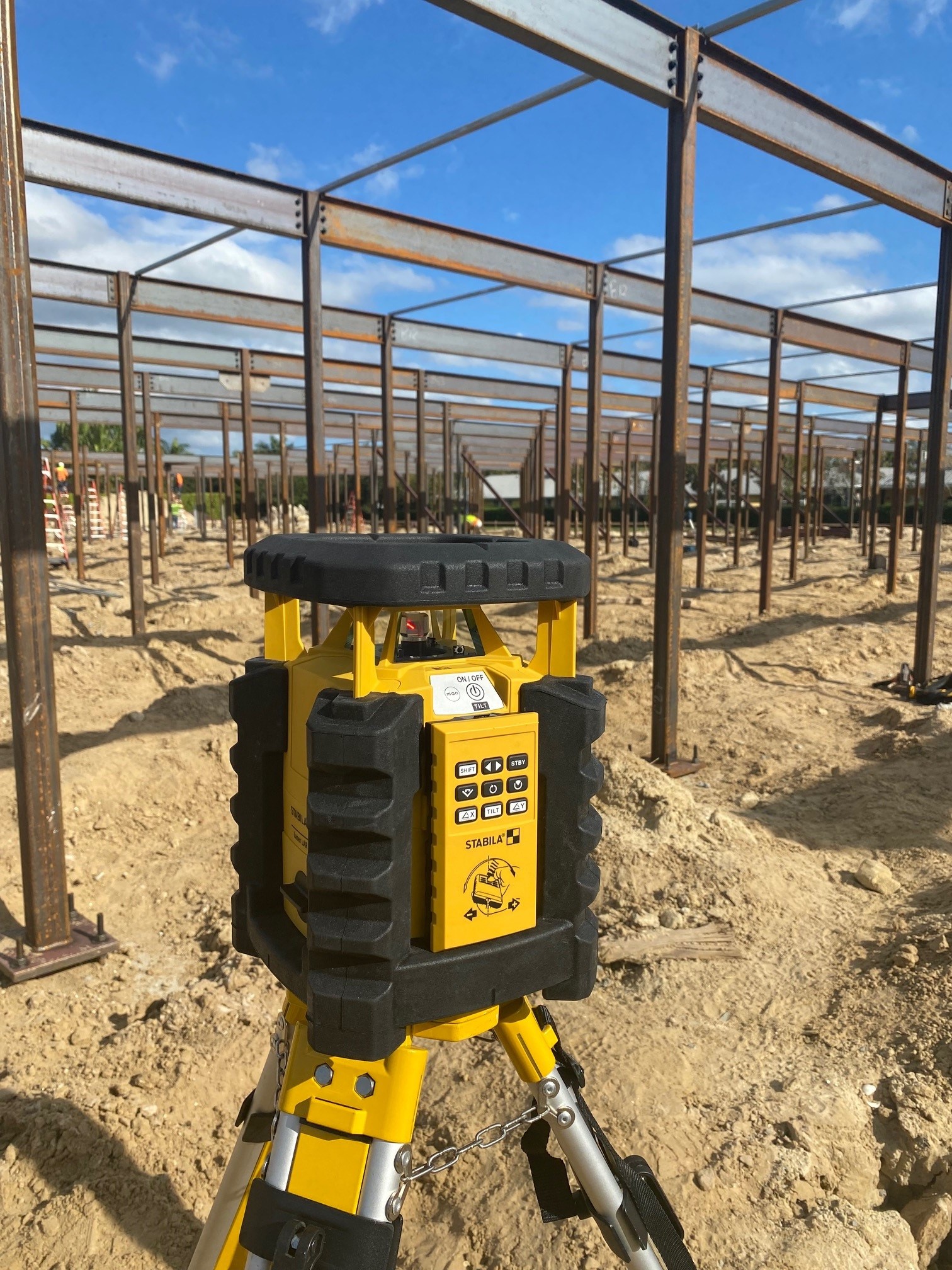

Rotary lasers, on the other hand, are versatile tools used for both interior and exterior applications. These lasers rotate 360 degrees, projecting a level line around the entire workspace. With a receiver, the working range for rotary lasers is usually between 1200 to 2600 feet in diameter. Some rotary lasers may have a single or dual slope feature that allows the user to adjust one axis or two. Rotary lasers are ideal for large-scale projects:

* Bricklaying: Creating the leveling course.

* Concrete Construction: Building walls, flat work, patios, and driveways.

* Paving: Laying out parking lots and drainage systems.

* Commercial Construction: Assisting in layout and framing.

* Residential Construction: For squaring, layout, and framing.

* Excavation and Sewer Work: Useful for site and underground work.

* Landscaping Work: For building retaining walls, ponds, and installing pavers.

* Carpentry and Wood Construction: Facilitating framing, siding, and trim work.

* Civil Engineering and Pipeline Construction: For installing pipelines.

Why Use Lasers in Construction?
Using lasers in construction is a faster and more efficient way to perform grading or leveling applications. Traditional methods often require two people and are time-consuming, such as setting stakes and pulling strings. A rotary laser simplifies this process:

* Grading a Site: One person can set up the rotary laser on a tripod and use a detector on a grade rod. By marking high spots with an 'X' and low spots with an 'O,' the task becomes quick and efficient versus setting stakes and pulling string lines.

* Setting Cabinets: For interior applications, a personal laser or rotary laser can establish the reference line for the tops of base cabinets, making positioning, shimming, and fastening them easier.

Choosing the Right Laser
Deciding which laser to use depends on the specific work being performed. For mostly interior work and smaller areas, a cross line laser is ideal. For larger distances and exterior work, a rotary laser is preferred. Here’s a detailed look at the pros and cons of each type for interior work:

Pros of Using a Rotary Laser for Interior Work:
* Greater Range: Suitable for wide-open spaces.

* Higher Accuracy: Typically more precise than personal lasers.

* Versatility: Can handle both interior and exterior tasks with distances up to 2,600 feet.

Cons of Using a Rotary Laser for Interior Work:
* Cost: More expensive compared to personal lasers.

* Bulkiness: Larger and more cumbersome to move, mount, and position.

Pros of Using a Cross Line Laser for Interior Work:
* Excellent Visible Range: Easy to see the steady-state beams.

* Cost-Effective: Less expensive than rotary lasers.

* Ease of Use: Simpler to set up and use for small to medium-sized interior tasks.

Cons of Using a Cross Line Laser for Interior Work:
* Shorter Range: Limited to distances less than 100 feet.

* Lower Accuracy: Less precise over long distances compared to rotary lasers.

Green Diodes vs. Red Diodes
An important consideration when choosing a laser is the color of the diode. Traditionally, lasers predominantly featured red diodes, but advancements in technology have expanded the options considerably. Green diodes are more visible to the human eye than red diodes, which can be crucial in certain lighting conditions. However, for outdoor work, even green diodes require a detector to be seen in bright sunlight. Diode color also affects battery life; red lasers typically have longer battery life since they don’t require as much power as a green laser.

Lasers have revolutionized the construction industry by providing tools that enhance precision, speed, and efficiency. Whether using personal lasers for detailed interior tasks or rotary lasers for extensive exterior projects, understanding the applications and limitations of each type is crucial. By choosing the right laser, construction professionals can significantly improve their workflow, reduce labor costs, and achieve better results in their projects.

About the Author:
Jeffrey Beck, President & CEO of Stabila Inc, brings over three decades of experience in the construction industry, beginning his career in 1993. He spent 26 years at DEWALT, where he held diverse roles ranging from Service Center Manager to Director of Product Development for Saws and Woodworking Tools. In January 2020, he transitioned to Stabila Inc, focusing on distributor development and driving sales through innovative, application-based products.
